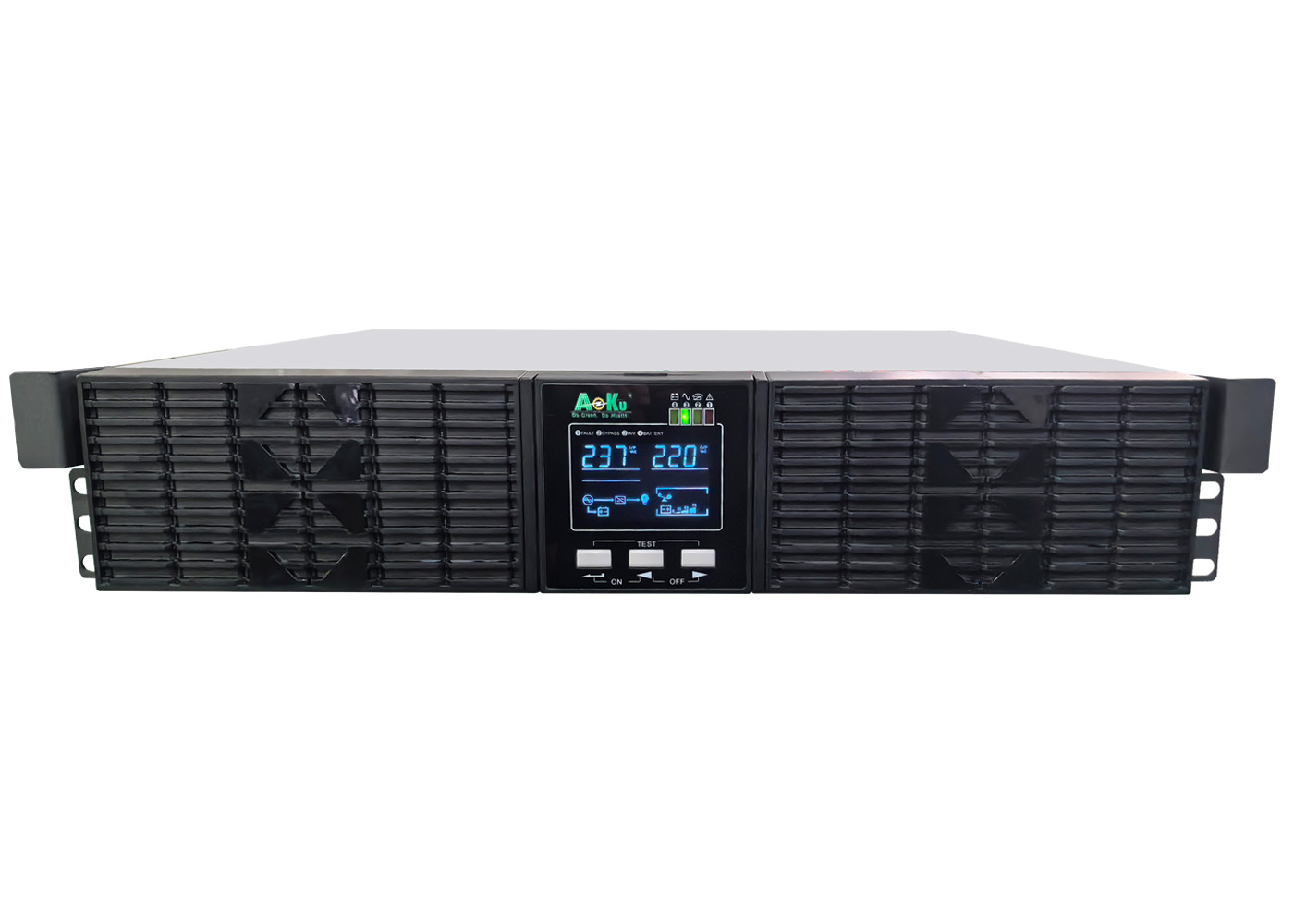

AoKu AKH-RM Series High Frequency Transformerless Rack-Mounted Online UPS (1KVA / 2KVA / 3KVA / 6KVA / 10KVA)
AoKu AKH-RM Series High Frequency Transformerless Rack-Mounted Online UPS (1KVA / 2KVA / 3KVA / 6KVA / 10KVA)
The AoKu AKH-RM Series (1KVA - 10KVA) is a high-frequency rack-mounted online double-conversion UPS system designed for 19-inch IT server racks and data centers. Features 0ms transfer time, PF=1.0 output power factor, 110V–300V wide AC input range, <1% THD pure sine wave output, 1–12A adjustable battery charger (-L long-backup models), LCD display, EPO, and RS232/USB/SNMP smart monitoring.
Form Factor / Mounting Type
Standardized 19-inch rack-mounted casing (2U to 3U profile), designed for standard server cabinet integration.
Intelligent Communication Expansion

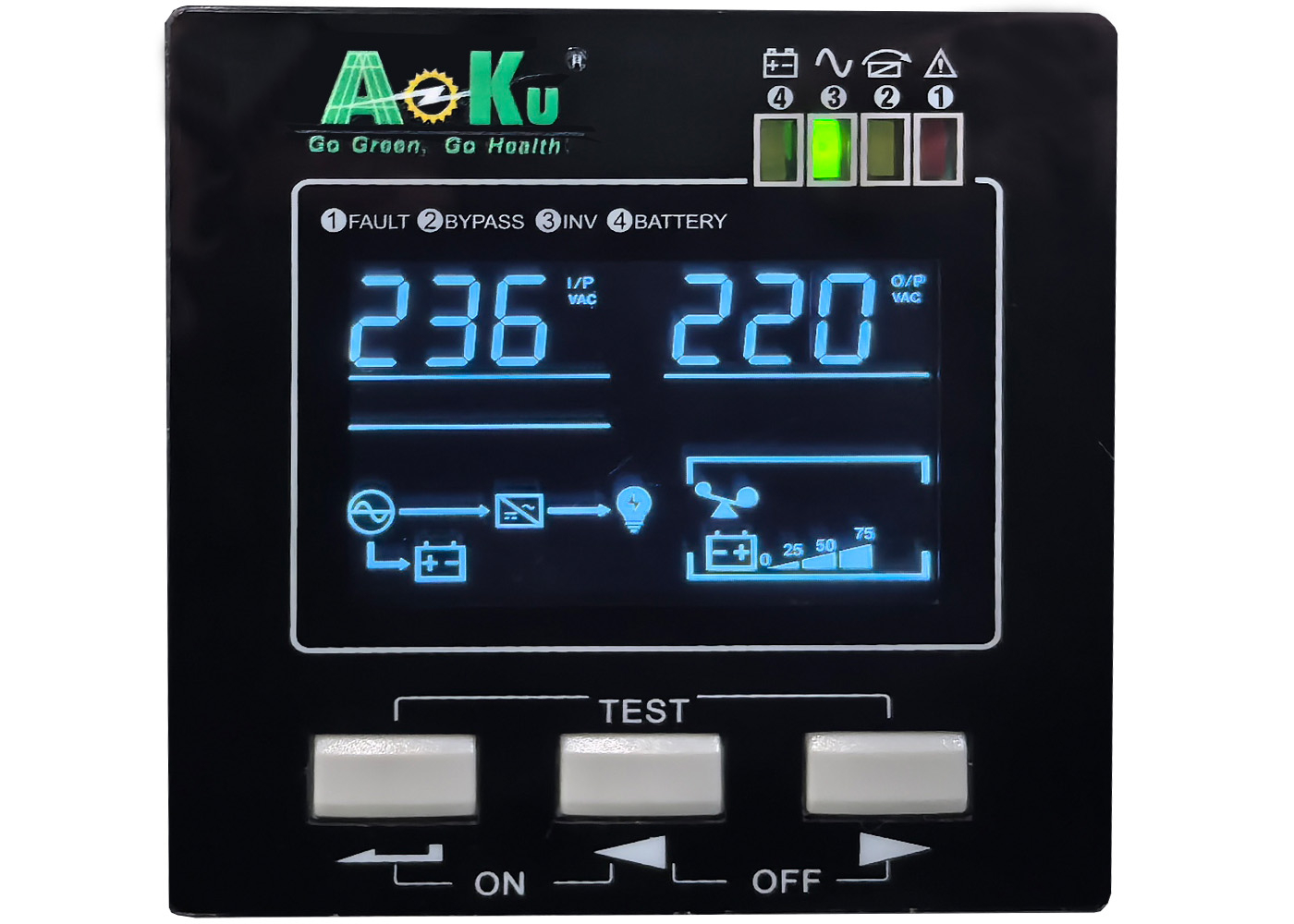

Graphic LCD display with RS-232, USB and EPO ports; optional SNMP / Modbus cards enable real-time PC and mobile remote management.
Battery Quantity Customization
Highly flexible hardware battery mapping (configurable for 16, 18, or 20 units on 6KVA/10KVA models).
KEY FEATURES & BENEFITS
High-Frequency Double-Conversion Online Topology with 0ms Transfer
Engineered with advanced DSP digital control and double-conversion online architecture, delivering continuous, uninterrupted pure sine wave power to mission-critical IT equipment. Zero transfer time (0ms) from utility grid to battery mode eliminates server reboots and data corruption during power outages.
Unity Output Power Factor (PF=1.0) & Maximum Active Power Yield
Provides unity output power factor (PF=1.0, e.g., 3KVA=3000W, 10KVA=10000W), maximizing usable active wattage for modern high-density server racks and active PFC blade servers without power derating.
Ultra-Wide AC Input Range (110Vac–300Vac) & Active PFC (PF ≥0.99)
Tolerates extreme voltage fluctuations (110Vac to 300Vac) without switching to battery power, preserving battery lifespan for genuine blackout emergencies. Input power factor corrector (PFC ≥0.99) reduces grid distortion and lowers operational electricity costs.
19-Inch Rack / Tower Convertible Enclosure
Designed for versatile deployment in standard 19-inch IT equipment cabinets, network racks, or freestanding tower configurations. Space-saving rackmount form factor optimizes rack U-space while featuring a rotating LCD control panel for easy viewing.
Adjustable Strong Charger (1A–12A) for Long-Backup (-L) Configurations
Long-backup models (-L) feature powerful 1A to 12A digitally adjustable AC chargers, capable of rapidly recharging high-capacity external lead-acid or LiFePO4 battery banks to ensure multi-hour runtime during extended utility outages.

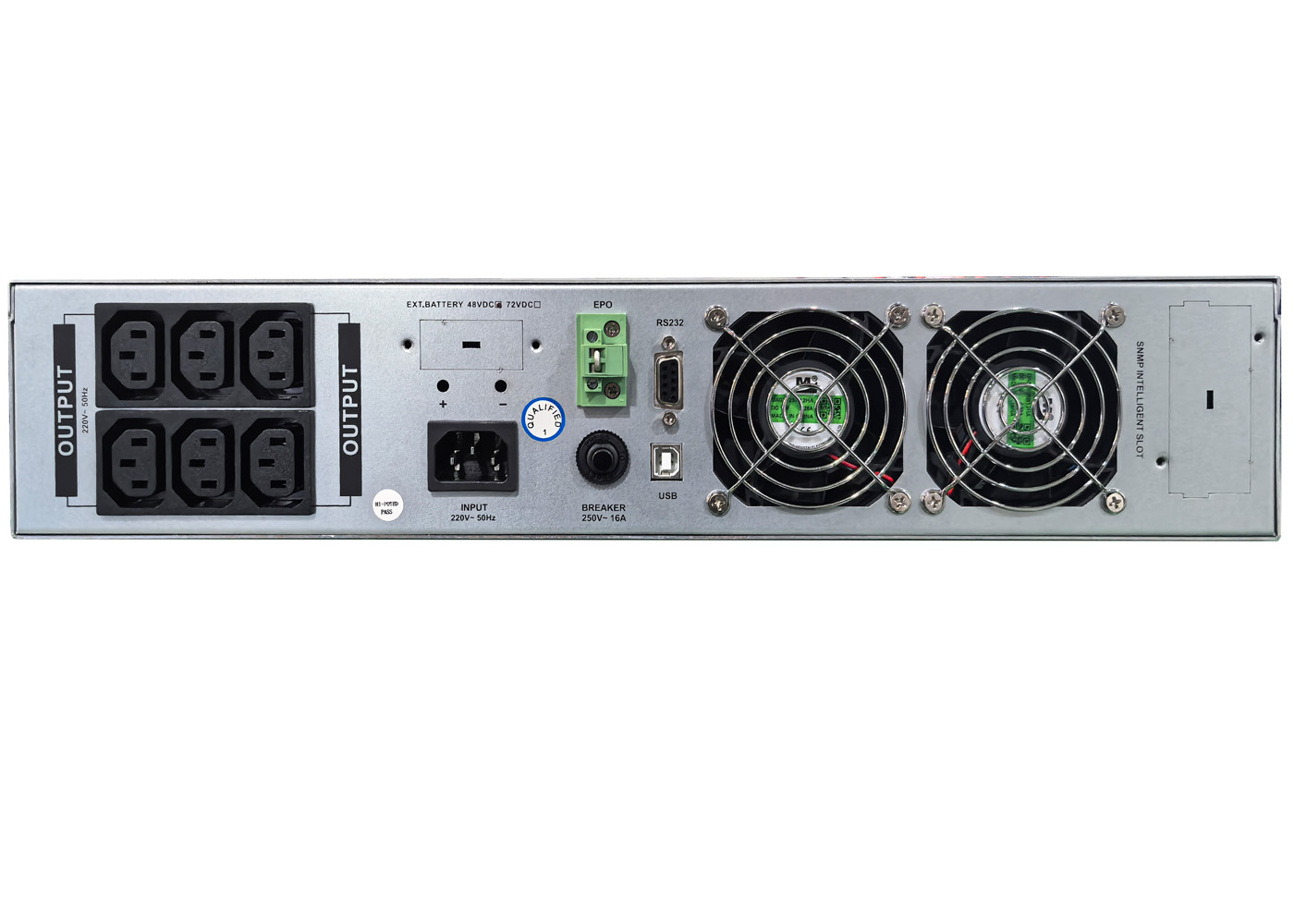

Comprehensive Smart Ports (USB / RS232 / EPO / Optional SNMP)
Equipped with USB, RS232, and Emergency Power Off (EPO) terminals as standard. Supports optional SNMP network cards and dry contact relay cards for centralized remote monitoring, automated server shutdown, and cloud telemetry.
PRODUCT SPECIFICATIONS
| Technical Parameter | AKH-1K-RM / -L | AKH-2K-RM / -L | AKH-3K-RM / -L | AKH-6K-RM / -L | AKH-10K-RM / -L |
|---|---|---|---|---|---|
| ⚡ System Ratings & Capacity | |||||
| Rated Capacity (VA / Watt) | 1 KVA / 1000 W | 2 KVA / 2000 W | 3 KVA / 3000 W | 6 KVA / 6000 W | 10 KVA / 10000 W |
| Output Power Factor (PF) | PF = 1.0 | PF = 1.0 | PF = 1.0 | PF = 1.0 | PF = 1.0 |
| UPS Topology & Form Factor | High-Frequency Double-Conversion Online (19-Inch Rack/Tower Convertible) | ||||
| 🔌 AC Input Parameters | |||||
| Input Wiring & Voltage | L + N + PE | Single Phase 208 / 220 / 230 / 240 VAC | ||||
| AC Input Voltage Range | 110 VAC – 300 VAC (Power limited @ 110–176VAC) | 110 VAC – 300 VAC (Power limited @ 110–176VAC / 264–300VAC) | |||
| Input Frequency Range | 50 Hz / 60 Hz ± 6Hz (±10Hz configurable) | ||||
| Input Power Factor & THDi | PFC ≥ 0.99 | THDi ≤ 3% (Linear Load) / ≤ 5% (Non-linear Load) | ||||
| ⚙️ AC Inverter Output Parameters | |||||
| Output Voltage & Accuracy | 208 / 220 / 230 / 240 VAC ± 1% (Pure Sine Wave) | ||||
| Output THDv Distortion | ≤ 1% THD (Linear Load) / ≤ 3% THD (Non-linear Load) | ≤ 2% THD (Linear Load) / ≤ 5% THD (Non-linear Load) | |||
| Transfer Time (Utility to Batt) | 0 ms (Zero Transfer Time) | Inverter to Bypass: 4ms | ||||
| Inverter Peak Efficiency | 94.5% (AC) / 89.5% (DC) | 95.5% (AC) / 91.5% (DC) | 95.5% (AC) / 91.5% (DC) | 95.3% (AC) / 94.8% (DC) | 95.5% (AC) / 95.0% (DC) |
| 🔋 Battery & Charger Specifications | |||||
| Standard DC Voltage & Batt Qty | 36 VDC (7Ah x 2/3) | 48 VDC / 72 VDC (7Ah x 4) | 72 VDC / 96 VDC (7Ah x 6) | 192 VDC (16 / 18 / 20 PCS Adjustable, Default 16PCS) | |
| Charge Current (Standard vs -L) | Standard -RM: 1.0A (1-2A adj) | Long Backup -L: 5.0A (1-12A adj) | Adjustable 1A – 12A (Default 1A / PF=0.8) | |||
| 📐 Physical Dimensions, Weight & Environment | |||||
| Chassis Case Size (L x W x H) | 438 x 88 x 385 mm | 438 x 88 x 505 mm | 438 x 88 x 505 mm | UPS Case: 438 x 385 x 88 mm | Batt Pack: 438 x 690 x 88 mm | |
| UPS Net Weight (KG) | 10.4 kg (-RM) / 5.8 kg (-L) | 14.9 kg (-RM) / 7.0 kg (-L) | 20.5 kg (-RM) / 7.4 kg (-L) | 9.5 kg (w/o batt pack) | 10.25 kg (w/o batt pack) |
| Communication Ports & Display | 1*USB + 1*RS232 + 1*EPO Terminal | Intelligent Slot (Optional SNMP / Dry Contacts) | Graphic LCD | ||||
| Operating Temp & Safety Compliance | 0°C – 40°C | EN/IEC 61000, EN/IEC 62040, GB/T4943, YD/T 1095, TLC Certified | ||||
Technical Documentation
Access complete industrial specification layouts, installation blueprints, communication protocol guides, and international compliance certifications.
Technical Catalog
Get the AoKu AKH-RM catalog for full electrical specifications, cabinet dimensions, battery configurations, wiring guides, and certifications.
User Manual
Get the AoKu AKH-RM user manual for step-by-step installation, wiring diagrams, LCD settings, warning/fault code solutions, and battery maintenance.
PRODUCT APPLICATIONS
Engineered specifically for 19-inch IT infrastructure, enterprise server racks, and critical industrial automation, the AoKu AKH-RM Series Rack-Mounted Online UPS integrates seamlessly across six key commercial and technological deployment scenarios:
🖥️ 19-Inch IT Server Racks & Enterprise Data Centers
Provides clean, uninterruptible power to enterprise blade servers, SAN storage arrays, core routers, and cloud computing cabinets, eliminating power interruption risks and server reboots.
📡 Telecom 5G Base Stations & Network Switching Hubs
Delivers continuous power backup for outdoor telecom enclosures, edge computing stations, and 5G cellular communication towers under harsh outdoor grid conditions.
🏬 Industrial Automation & PLC Control Cabinets
Protects factory automated assembly lines, PLC controllers, and robotics cabinets from voltage sags and grid transients, preventing costly line halts and ruined batches.
🏥 Precision Medical Equipment & Lab Instrumentation
Supplies highly accurate 220V ±1% pure sine wave power to hospital diagnostic equipment, blood analyzers, and research lab centrifuges requiring zero harmonic noise.
🏦 Financial Banking Terminals & Security Monitoring
Ensures 24/7 uptime for bank ATM networks, CCTV surveillance head-ends, and access control servers during regional blackout emergencies.
⚡ Distributed Microgrid & Generator Backup
Acts as a clean energy bridge in microgrid setups, conditioning frequency fluctuations from backup diesel generators to safeguard sensitive electronics.
PRODUCT SOLUTIONS
Technical solution architectures engineered by AoKu Energy to overcome power availability, space constraints, and remote monitoring challenges in modern data center engineering:
⚡ 0ms Double-Conversion Power Isolation Architecture
AoKu Solution: Full double-conversion topology isolates IT loads from grid power anomalies, delivering a constant 220V ±1% pure sine wave with 0ms transfer time during outages.
📦 19" Rack U-Space Optimization & Convertible Form Factor
AoKu Solution: Standard 19-inch rack-mounted form factor integrates effortlessly into IT cabinets, minimizing floor footprint while offering tower conversion versatility.
📈 Multi-Hour Extended Runtime via 1-12A Adjustable Charger
AoKu Solution: Long-backup (-L) models incorporate powerful 1A to 12A chargers to rapidly recharge high-capacity external lead-acid or LiFePO4 battery banks.
🔋 PFC ≥0.99 Energy Efficiency & Generator Conditioning
AoKu Solution: Active PFC ≥0.99 lowers electricity bills and grid distortion while smoothing frequency variations when operating on backup diesel generators.
📱 Centralized SNMP Network Telemetry & Auto-Shutdown
AoKu Solution: Intelligent card slot supports optional SNMP network cards for centralized web browser management, remote email alerts, and graceful OS shutdown.
🛡️ EPO Emergency Power Off & Complete Hardware Safeties
AoKu Solution: Integrated EPO terminal enables instant remote power cutoff during facility emergencies, backed by comprehensive hardware-level overload and short circuit protections.
